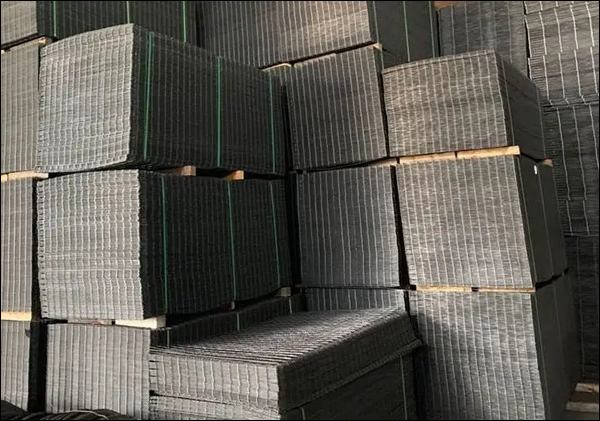

Hot-Dip Zinc Plated Welded Wire Mesh Panels

We supply hot-dip zinc plated welded wire mesh panels for construction, fencing, industrial use, and general reinforcement. All panels feature a strong welded grid structure, corrosion-resistant galvanized coating, and consistent center-to-center spacing for reliable performance.

Standard Welded Wire Mesh Panel Specifications

• 12 mm Center Spacing Panels
  Center-to-center distance: 12 mm
  Panel size: 4 ft × 10 ft
  Wire diameter: 14 gauge
• 50 mm Center Spacing Panels
  Center-to-center distance: 50 mm
  Panel size: 4 ft × 10 ft
  Wire diameter: 2.3 mm
• Combination Spacing Panels (12 mm to 50 mm) – 18-inch Width
  Center-to-center distance:
  12 mm spacing from 0–6 inches of panel width
  50 mm spacing from 6–18 inches of panel width
• Panel size options:
  18 inches × 10 ft
  18 inches × 2 ft
  Wire diameter: 2.3 mm

Welded Wire Mesh Reinforcement for Concrete – Standard Mesh Size and Panel Dimensions

Welded wire mesh reinforcement is commonly supplied in 10 mm diameter steel wires welded into uniform grids. Panels are typically cut to 2500 mm × 2500 mm for suspended installations, ceilings, and architectural finishes.

• Panel Dimensions: Panels are cut to 2500 mm × 2500 mm for ceiling installation.
• Wire Diameter Range: Mesh wire sizes range from 6 mm to 12 mm, with 10 mm standard.
• Cross-Sectional Area: 10 mm wire provides 78.5 mm² of reinforcing cross-sectional area.
• Grid Spacing Options: Mesh spacing includes 100 mm, 150 mm, 200 mm, or 50–300 mm custom.
• Material Grade: Reinforcing mesh uses Grade 500 MPa high-strength steel for structural performance.
• Load Considerations: 10 mm mesh safely supports 5–10 kg per suspension point.

Available Finishes

Welded Mesh is produced in four standard finishes and supplied in flattened rolls or cut-to-size panels. It is widely used for fence panels, industrial screening, and concrete reinforcement steel grids. The mesh is manufactured by welding intersecting steel wires to create a rigid and durable grid for security, construction, and industrial applications.

• Hot-Dipped Galvanized Wire Mesh (HDG): Steel wire mesh hot-dip galvanized after welding for superior corrosion resistance in outdoor environments, perimeter fencing, and concrete reinforcement.
• Galvanized After Weld Wire Mesh (GAW): GAW Welded Mesh is manufactured by welding raw steel wire followed by full zinc coating. This ensures every weld point and exposed area is fully protected, offering longer service life compared to traditional galvanized methods.
• Galvanized Before Weld Mesh Panels (GBW): GBW mesh panels are made from pre-galvanized wire welded into a uniform grid. This finish provides a clean appearance with reliable performance for light-to-medium duty applications.
• PVC Vinyl-Coated Wire Mesh: Steel wire mesh coated with PVC for improved weather resistance, abrasion protection, and extended service life in coastal and high-moisture environments. Available in panels and rolls.
• Supply Forms: Panels and Rolls

Applications

Welded Mesh is available in flat panels or continuous rolls for flexible installation options, making it suitable for fencing, screening, and site reinforcement.

• Perimeter fence panels
• Industrial screening
• Concrete reinforcement grids
• Agricultural enclosures
• Infrastructure and building projects

PVC Coated Welded Wire Mesh

PVC coated welded wire mesh is a durable metal mesh manufactured by welding low-carbon steel wire and applying a PVC protective coating. It is commonly used for animal cages, small enclosures, and DIY home projects. The PVC layer enhances corrosion resistance, color options, and overall service life in indoor and outdoor environments.

Mesh Spacing Options

• 1/2" Mesh Spacing: Fine grid spacing suitable for small animal cages, protective enclosures, and secure DIY builds.
• 1" Mesh Spacing: Larger mesh spacing ideal for general animal housing, fencing, and lightweight framing applications.

Wire Gauge Selection

• 16 Gauge Wire: Provides higher strength for larger enclosures and heavier-duty use.
• 19 Gauge Wire: Suitable for light-duty cages and compact DIY structures.

Available Colors

Beyond standard green PVC coating, the mesh can be supplied in multiple colors to match project requirements:

• Grey
• Yellow
• Red
• Purple
• Black

Custom colors may be available upon request depending on order volume.

Typical Applications

• Small animal cages
• Bird cages and aviaries
• Rabbit hutches
• Pet enclosures
• Home DIY fencing
• Craft and garden projects

Common Export Types

• Welded Mire Mesh Panels: 10mm thick wire, 88.9mm square opening, panel size 1,219mm x 3,048mm, steel and or galvanized steel.
• Welded mesh fence panels are 200 x 50mm.mesh,manufactured from 5mm.wire and galvanised. Width is 3.0m.and heights are 1.52,1.81,2.0 & 2.41m. Panels incorporate 'V' shape reinforcing folds.

• Height: 72"
• Pattern: 4" by 4"
• Gauge: 10 gauge
• Finish: Galvanized ( for outdoor use )
• Material: Galvanized Plastic coated wire Wire Diameter: 1.80 mm Plastic Coated Diameter: 2.80 mm Tolerance: ±0.05 mm Coils: duly wrapped for sea transportation with 4 belts weighing from 600 to 850 Kg

• The hot dipped galvanized wire must have a tensile strength of 450 to 50 0 N/mm² and the zinc coated must be from 40 to 50 g/m². 84' x 4' x 4' x 20ft in both 10g and 8g. Competition is very hard at the moment and I need your very best discount price.

Hot dip zinc plated Welded Mesh

• Centre to centre distance : 12 mm
• Panel width : 4 ft.
• Panel length : 10 ft.
• Wire diameter ; 14 gauge
• Centre to centre distance : 50 mm
• Panel width : 4 ft.
• Panel length : 10 ft.
• Wire diameter ; 2.3 mm
