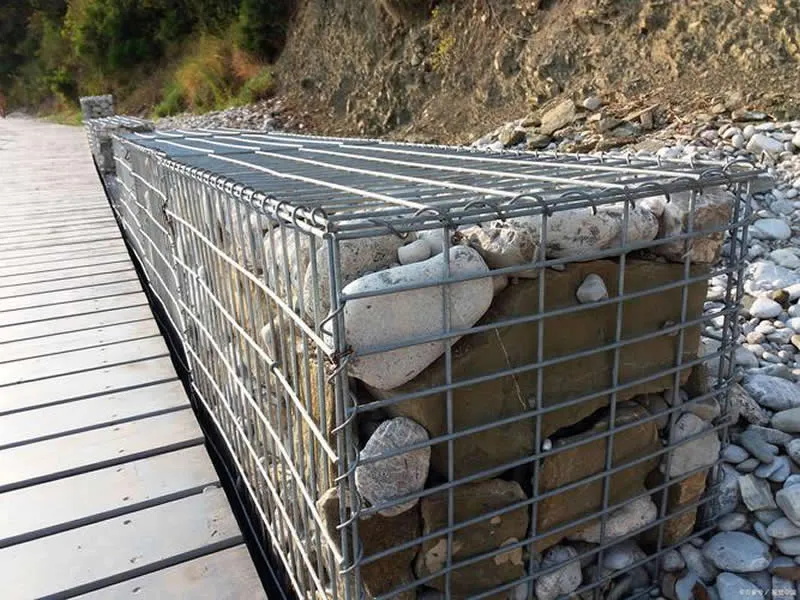

Welded gabion mesh consists of rigid welded wire panels, manufactured to assemble stone-filled baskets, landscape walls, retaining structures and erosion control units. We adopt hot-dip galvanized wire, Galfan wire and PVC-coated galvanized wire as raw materials.
Baskets are assembled from flat welded panels using spiral binders, C-rings, clips or lacing wire. Internal stiffeners are fitted on exposed sides to prevent panel bulging after stone filling. Unlike twisted gabion mesh, welded gabions deliver flatter surfaces and standard box shapes, ideal for projects requiring tidy appearance, neat alignment and modular installation.
- Material: Hot-dip galvanized steel wire, Galfan-coated steel wire, PVC-coated galvanized steel wire
- Wire Diameter: 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
- Mesh Aperture: 50mm×50mm, 50mm×100mm, 75mm×75mm, 75mm×100mm, 100mm×100mm
- Basket Size: 0.5m×0.5m×0.5m, 1m×0.5m×0.5m, 1m×1m×1m, 2m×0.5m×0.5m, 2m×1m×1m, 3m×1m×1m
- Panel Form: Supplied as flat welded panels for on-site assembly; pre-assembled units available on request
- Fasteners: Spiral binders, C-rings, clips and tie wire, selected according to basket size and assembly method
- Stiffeners: Internal bracing wires or hook stiffeners for tall basket faces
- Surface Treatment: Post-weld hot-dip galvanized, pre-weld galvanized, Galfan coating, PVC coating over galvanized wire
- Corrosion Resistance: Standard galvanized for dry outdoor and landscape use; Galfan or PVC coating for wet soil, riverbanks and long-term exposure
- Filling Stone: Hard rock, crushed stone, cobblestone and decorative stone. Stone size must exceed mesh aperture
- Packing: Flat panels bundled on pallets; fasteners and stiffeners packed separately
- Installation Guidance: Confirm foundation, drainage, backfill and design requirements before building retaining walls
We have exported to distributors, contractors, and project developers in Southeast Asia, Europe, the Middle East, Africa, and South America. We support custom mesh sizes, wire diameters, bulk orders, third-party inspection, and flexible shipping. Our sales team responds via email and WhatsApp with product parameters, project recommendations, and clear quotations. Quality is our priority. Each batch is checked for thickness, tensile strength, and anti-rust performance before shipment. Test reports are available for customs clearance or project bidding.
Quality is our priority. Each batch is checked for thickness, tensile strength, and anti-rust performance before shipment. Test reports are available for customs clearance or project bidding.
Welded Gabion Basket – 1m × 1m × 1m, 50mm × 50mm Mesh
This 1m×1m×1m welded gabion basket features 50mm×50mm square mesh. It is delivered as flat panels with complete fasteners, suitable for garden walls, small retaining structures and decorative stone cages.
Technical Specifications
Basket Size: 1m × 1m × 1m
Mesh Aperture: 50mm × 50mm
Wire Diameter: 3.5mm / 4.0mm
Material: Hot-dip galvanized steel wire
Fasteners: Spiral binders or C-rings
Stiffeners: Hook stiffeners (optional)
Surface Finish: Galvanized
Packing: Flat packed panels with matching accessories
Applications
Garden gabion walls, decorative stone containers, small retaining and boundary structures.
