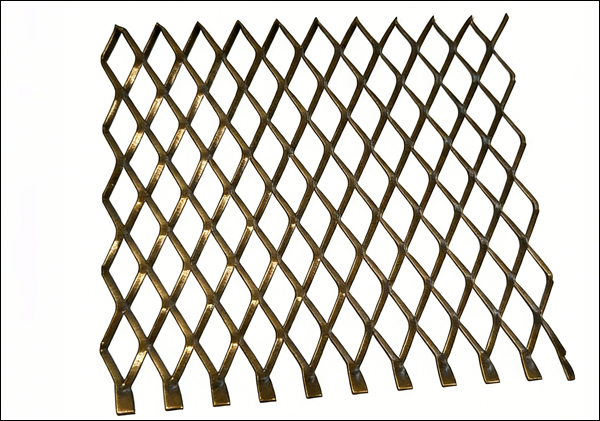

ZhongPu Wire Mesh Co., Ltd. offers Expanded Metal Fence products manufactured from carbon steel, galvanized steel, stainless steel, or aluminum sheets, formed by slitting and stretching into rigid, uniform mesh panels. Available varieties include standard, flattened, and heavy-duty expanded metal fences, with diamond or special apertures for security and architectural use. These fences provide high strength, visibility, ventilation, and resistance to impact and cutting, making them suitable for industrial sites, highways, power facilities, and perimeter protection. Customization options include mesh size, strand width, panel dimensions, frame structures, surface treatments such as hot-dip galvanizing, PVC coating, or powder coating, and tailored installation systems to meet project-specific requirements.
Type
- Standard Expanded Metal Fence: Industrial and utility fencing with diamond mesh 30–60 mm, strand thickness 2–4 mm, panel height 1.8–2.4 m for perimeter security.
- Flattened Expanded Metal Fence: Architectural and commercial fencing using flattened mesh 20–40 mm, smooth surface, panels 1.5–2.0 m high for safety and appearance.
- Heavy-Duty Expanded Metal Fence: High-security fencing for airports and infrastructure, thick strands 4–6 mm, mesh 40–80 mm, fence height up to 3.0 m.
- Galvanized Expanded Metal Fence: Outdoor perimeter fencing with hot-dip galvanized mesh 30–60 mm, corrosion resistant, standard panel heights 1.8–2.4 m.
- PVC-Coated Expanded Metal Fence: Urban, school, and residential fencing with PVC-coated mesh 30–50 mm, color options, fence heights 1.2–2.4 m.
- Aluminum Expanded Metal Fence: Lightweight architectural fencing using aluminum mesh 25–50 mm, corrosion resistant, panel heights 1.2–2.0 m.
- Stainless Steel Expanded Metal Fence: Chemical, coastal, and food-industry fencing with stainless mesh 20–40 mm, high durability, panels 1.5–2.4 m high.
- Carbon Steel Expanded Metal Fence: Cost-effective industrial fencing with carbon steel mesh 30–60 mm, surface coated, standard heights 1.8–2.4 m.
- Framed Expanded Metal Fence Panels: Modular fencing systems with steel frames, mesh 30–60 mm, typical panel size 2000×2400 mm for easy installation.
- Welded Expanded Metal Fence Systems: Permanent security fencing with welded panels, mesh 40–60 mm, panel width 2.5 m, high structural strength.
- Bolted Expanded Metal Fence Systems: Removable fencing for flexible layouts, bolted panels 2.0–2.5 m wide, mesh 30–50 mm.
- Decorative Expanded Metal Fence: Architectural and landscape fencing with patterned mesh 20–40 mm, custom colors, tailored panel dimensions.
- Anti-Climb Expanded Metal Fence: High-security perimeter fencing with small apertures 10–25 mm, thick strands, fence height up to 3.0 m.
Framed diamond expanded mesh fence panel with welded steel border for security fencing
- Panel width: 1000–3000 mm
- Panel height: 1000–2400 mm
- Mesh opening (SWD): 25–75 mm
- Mesh opening (LWD): 50–150 mm
- Sheet thickness: 2.0–5.0 mm
- Frame thickness: 3.0–5.0 mm
- Frame width: 30–50 mm
- Material: Q235 carbon steel
- Surface finish: powder coated / galvanized
- Installation type: welded framed panel
-
Portable expandable metal traffic fence with wheels for temporary road and site safety control
- Expanded length: 2000–3500 mm
- Folded length: 300–500 mm
- Fence height: 1000–1600 mm
- Mesh opening: 40 × 80 mm
- Tube diameter: 25–38 mm
- Tube thickness: 1.0–1.5 mm
- Caster diameter: 75–100 mm
- Caster type: lockable PU wheel
- Weight per unit: 18–35 kg
- Color options: red/white, yellow/black
Мы производим просеивающие сетки с использованием проволоки крупного калибра, предварительно обжатой натянутой сетки и износостойких сплавов, что обеспечивает стабильную работу при высокой вибрации, истирании и сильных ударах. Размеры отверстий, диаметр проволоки и ширина пазов подбираются в соответствии с промышленными требованиями, такими как сортировка руды.
