ZhongPu Wire Mesh Co., Ltd. offers the 358 Anti-climb Mesh High Security Fence, classified as a rigid welded mesh barrier for perimeter protection in high-risk sites. Its 76.2 × 12.7 mm aperture and 4 mm wire diameter prevent cutting, climbing, and tool access while maintaining visibility. Panels are typically 2.4–3.0 m high and mounted on steel posts with anti-tamper fittings. The fence features high tensile strength, corrosion-resistant coating, and modular installation. It is widely used in prisons, airports, substations, military zones, warehouses, and border security projects.
358 Fence is a high-security welded mesh system designed to resist climbing and cutting. Its narrow aperture prevents finger and tool access, making it one of the most secure fencing barriers. Panels can include 2D or 3D bends to enhance visual design.
- Material: Panels are welded with high-quality carbon steel wires for strength and durability.
- Mesh Pattern: 76.2 mm (3") × 12.7 mm (0.5") mesh, resistance-welded at each intersection.
- Wire Diameter: Horizontal wire: 4 mm at 12.7 mm centers, vertical wire: 4 mm at 76.2 mm centers.
Types
- 2D High Security 358 Mesh Fence
- 3D High Security 358 Mesh Fence
- 358 Mesh with Razor Concertina Tape
- Prison Mesh with Crossed Razor Wire Tapes
- Y-Post Razor Barbed Wire 358 Fence
Feature:
- Aesthetic Design: Clean visual appearance suitable for modern security perimeters.
- Durability: High-strength construction ensures long service life in harsh environments.
- Fast Assembly: Compatible post systems enable easy and rapid installation.
- System Integration: Works seamlessly with matching doors and gate solutions.
- Cost Efficiency: Offers an excellent cost-to-quality ratio for secure fencing projects.
Colors: Polyester coated Green RAL6005, red, yellow, whiteRAL9010 and so on.
|
358 High Security System |
||||||
|
Panels |
Posts |
|||||
|
Fenceheight m |
Panel Size Height/Width mm |
Section |
Length |
Number of fixings |
||
|
Inter- 1N ° Clamp |
Cornet- 2N ° Clamp |
|||||
|
2.0 |
2007 x 2515 |
60x60x2.5mm |
2700 |
7 |
14 |
|
|
2.4 |
2400 x 2515 |
60x60x2.5mm |
3100 |
9 |
18 |
|
|
3.0 |
2997 x 2515 |
80x80x2.5mm |
3800 |
11 |
22 |
|
|
3.3 |
3302 x 2515 |
80x80x2.5mm |
4200 |
12 |
24 |
|
|
3.6 |
3607 x 2515 |
100x60x3mm |
4500 |
13 |
26 |
|
358 Secure Mesh with 75 × 16 mm Aperture for High-Security Applications
Wire Specification
- Wire diameter: Ø 4 mm Zinc-Alu drawn wire (Galfan or Bezinal) with ±0.08 mm tolerance. Tensile strength: 500–625 MPa. Zinc coating mass: 265 g/m².
Mesh Configuration
- Horizontal wires at 13 mm centers.
- Vertical wires at 75 mm centers.
- Aperture: 75 mm × 16 mm.
- Resistance-welded at every intersection for rigidity.
Panel Size
- 2100 mm (H) × 2404 mm (L)
- 2384 mm (H) × 2404 mm (L)
- 2700 mm (H) × 2404 mm (L)

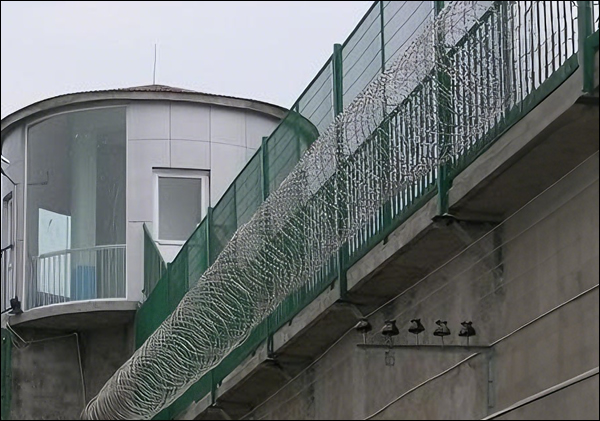

Y-Post Concertina Razor Wire with 3D 358 Security Fencing – Complete High-Security System
Y-Post Concertina Wire 358 mesh security fencing provides a high-security perimeter barrier combining anti-climb welded mesh panels with Y-shaped posts and razor concertina coils. The 76.2 × 12.7 mm mesh aperture blocks climbing and tool access, while galvanized or PVC-coated steel construction ensures durability. Designed for prisons, borders, airports, substations, and military facilities, this system offers strong visual deterrence, modular installation, and reliable protection for high-risk environments.
- High-security fencing systems use welded 358 mesh panels combined with steel fence posts, security gates, and concertina razor wire for maximum perimeter protection.
- Razor Wire Options: Razor wire formats include single-line barbed wire (galvanized or powder-coated), single concertina coil, crossed concertina coil, blade-type razor wire, and flat-wrap razor wire for compact installation.
- Rapid Deployment: 358 systems also offer a mobile rapid-deployment concertina unit designed for fast expansion, relocation, and repeated use in field operations.
- Defense Applications: Concertina wire coils are widely used by military bases, police forces, and emergency organizations for fast perimeter control and crowd security.
- Durable Construction: Panels and gates are manufactured from thick steel wire with heavy hot-dip galvanizing or PVC coating for corrosion resistance and long-term outdoor performance.
ZhongPu Wire Mesh Co., Ltd. specializes in the manufacturing of industrial screening products engineered for demanding filtration, separation, and grading processes. Our product range includes Mine Mesh Screens, Sand Control Screens, Wedge Wire Screens, Sieve Bend Screens, Water Well Screens, Quarry Screens, Oil Field Vibrating Screens, Hook Strip Screens, Steel Framed Shale Shaker Screens, Wave Type Shaker Screens, and Slotted Liners. These screens are produced with heavy wire gauges, pre-crimped wire structures, and reinforced mesh designs to ensure strength, precise aperture sizes, and long service life in mining, oil shale extraction, and groundwater well applications.
We manufacture screening meshes using coarse-gauge wire, pre-crimped tensioned mesh, and high-wear-resistant alloys, enabling stable performance under high vibration, abrasion, and heavy impact. Aperture sizes, wire diameters, and slot widths are customized to match industrial requirements such as ore grading, drilling fluid filtration, sand control in wells, coal screening, and aggregate separation.
In addition to industrial screens, ZhongPu Wire Mesh Co., Ltd. offers a complete selection of wire mesh materials for construction and security applications. Our products include 358 anti-climb mesh panels, welded wire fencing, barbed wire, razor wire, perforated metal sheets, expanded metal sheets, and steel grating panels, available in multiple mesh sizes, thicknesses, opening patterns, and panel dimensions to meet architectural, safety, and infrastructure needs.
ZhongPu Wire Mesh Co., Ltd. continues to serve industries with durable, specification-driven metal mesh solutions for mining operations, oilfield drilling systems, quarry processing, water treatment, infrastructure protection, and industrial filtration.
